Musical Fidelity Nu-Vista Series

Musical Fidelity Nu-Vista Series

The newly evolved Musical Fidelity Nu-Vista Series offers fully balanced, discrete Class A circuitry and separate Power Supply Units.

Musical Fidelity Nu-Vista Series

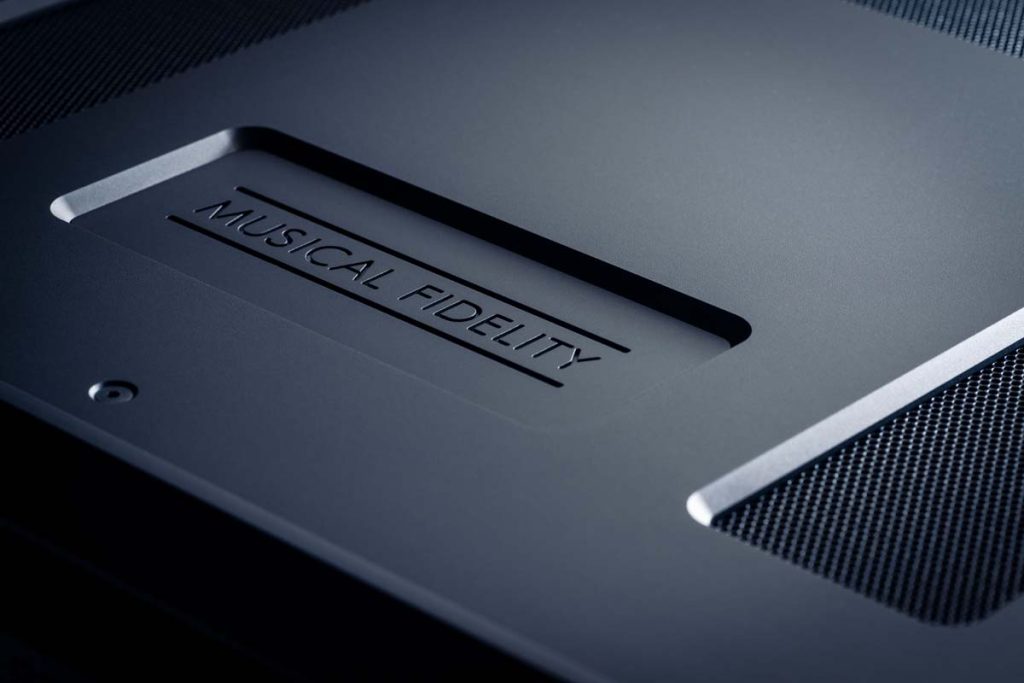

Based on the excellent Nu-Vista 800 circuit, Musical Fidelity decided to go all out “fully balanced” on the Nu-Vista range. The Nu-Vista‘s mechanical construction is uncompromisingly rigid and solid in typical Musical Fidelity tradition. Front panel and side panels are milled from extruded aluminium profiles and are extremely massive. The separate Nu-Vista PRE PSU houses all the transformers, which by nature generate mechanical vibrations and radiate harmful electromagnetic fields. Here they are as far away as possible from the critical amplifier circuits. This significantly contributes to great signal to noise ratio.

The Nu-Vista Pre is basically immune against the effects of vibration from the environment. The same can be said about electromagnetic immunity. The massive aluminium case acts as a Faraday cage. It protects the internals against outer electromagnetic fields, and in the same way, the rest of your hi-fi gear against electromagnetic fields generated by the Nu-Vista Pre & Pre PSU.

The Legendary Nu-Vista Stage

Musical Fidelity Nu-Vista Series

Never before in the history of hi-fi have Nuvistor tubes been coupled with state-of-the-art fully balanced and discrete technology and sophisticated modern design techniques. The technical performance of the Nu-Vista components is astonishing. They measure like a dream but, more importantly, sound incredible. Silky smooth with enormous transients and an effortless feel that is at once relaxing and involving. Of special note how they project images between the loudspeakers so that you can almost touch them.

The new Nu-Vista Components were a continued labour of love for Musical Fidelity. The developers are passionate about what they do and passionate about Nuvistor tubes as they have always been. They have set themselves the goal of creating devices that transport the passion that has gone into creating them.

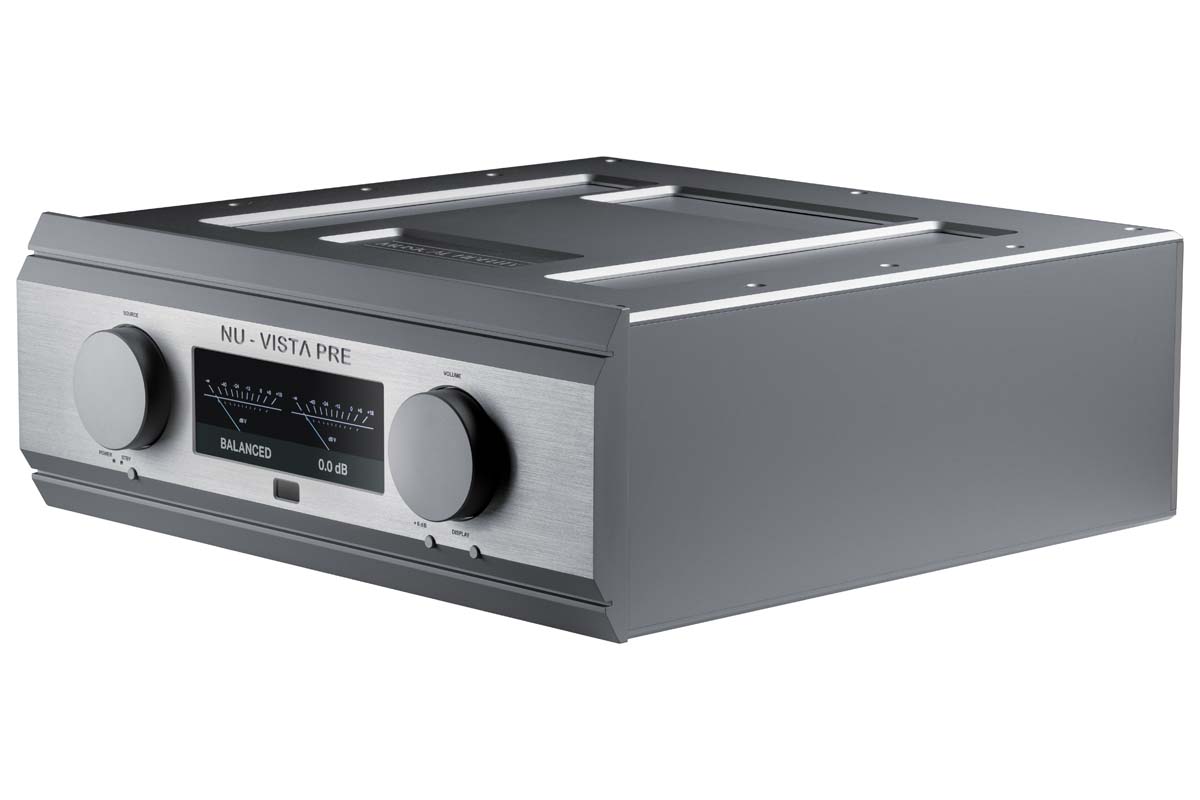

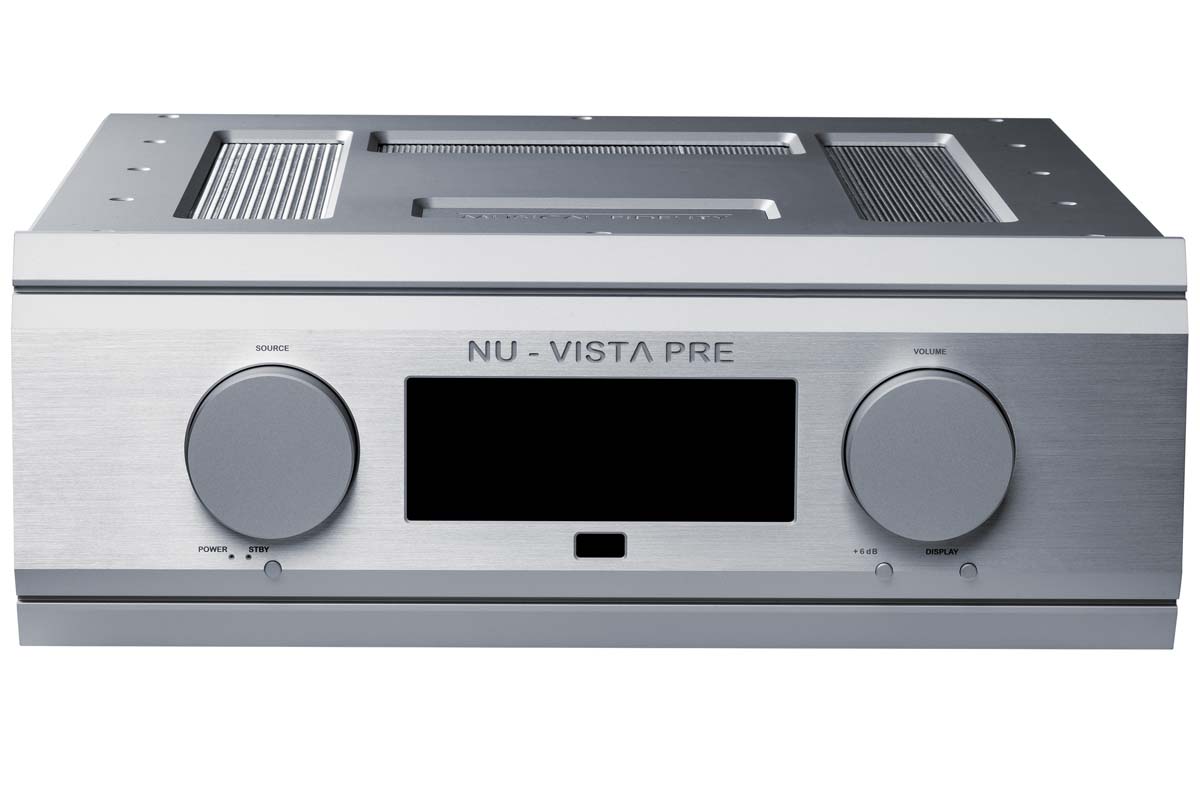

Musical Fidelity Nu-Vista Pre

Musical Fidelity Nu-Vista Series

The Nu-Vista Pre features the tried and tested Nu-Vista stage featuring 6S51N nuvistors in a discrete class A amplifier buffer. The Nu-Vista Pre uses a balanced configuration circuit and balanced precision matched stepped attenuator for volume control. This means even at low volume levels, as well as higher, stereo imaging will be precise and accurate.

For driving strength, a pair of mini power amplifiers (equivalent to 50W) are used for the output stages. They run in Class A for preamp purposes, giving the best in line driving capability, dynamic range, as well as reduced noise and distortion inherently. Supply capacitance is generous, and chokes are added for further improved supply ripple and pulse current spike reduction.

The Nu-Vista Pre comes with its own dedicated external power supply. To achieve better noise performance, we removed the AC mains power supply from the main unit and built it into another matching box. In this box we took advantage the extra space to set up inbuilt mains and output filtering. This quietens up the supplies and results in almost no mains-borne artefacts getting into the sensitive audio circuitry.

The Power supply has On/Standby LEDs and is controlled from the main unit front panel. If total mains isolation is required, the power supply also has rear mounted mechanical rocker switch for full power off.

Also included is the Nu-Vista remote control which is a solid “Nu-Vista” style re-imagination of usual remote controls. Machined from solid, it has the same feel as front panel of unit, has powerful beam, and runs off easily replaceable AAA Batteries.

Musical Fidelity Nu-Vista Series

Specifications

Pre-Amplifier
  • Output voltage: 28Vrms
  • Output current: 1A peak to peak
  • Output impedance: <47Ω
  • THD+N: < 0.002 % typical, 20Hz to 20 kHz
  • Signal / noise ratio: >120dB, 20Hz – 20kHz
  • Gain: 2.15x (normal); 4.3x (+6dB enabled); volume maximum
  • Input impedance: 100 K Ohms
  • Overload margin: 24dB
  • Channel separation: >100dB, 20Hz – 20kHz
  • Frequency response: +0, -1dB, 5Hz to 100kHz

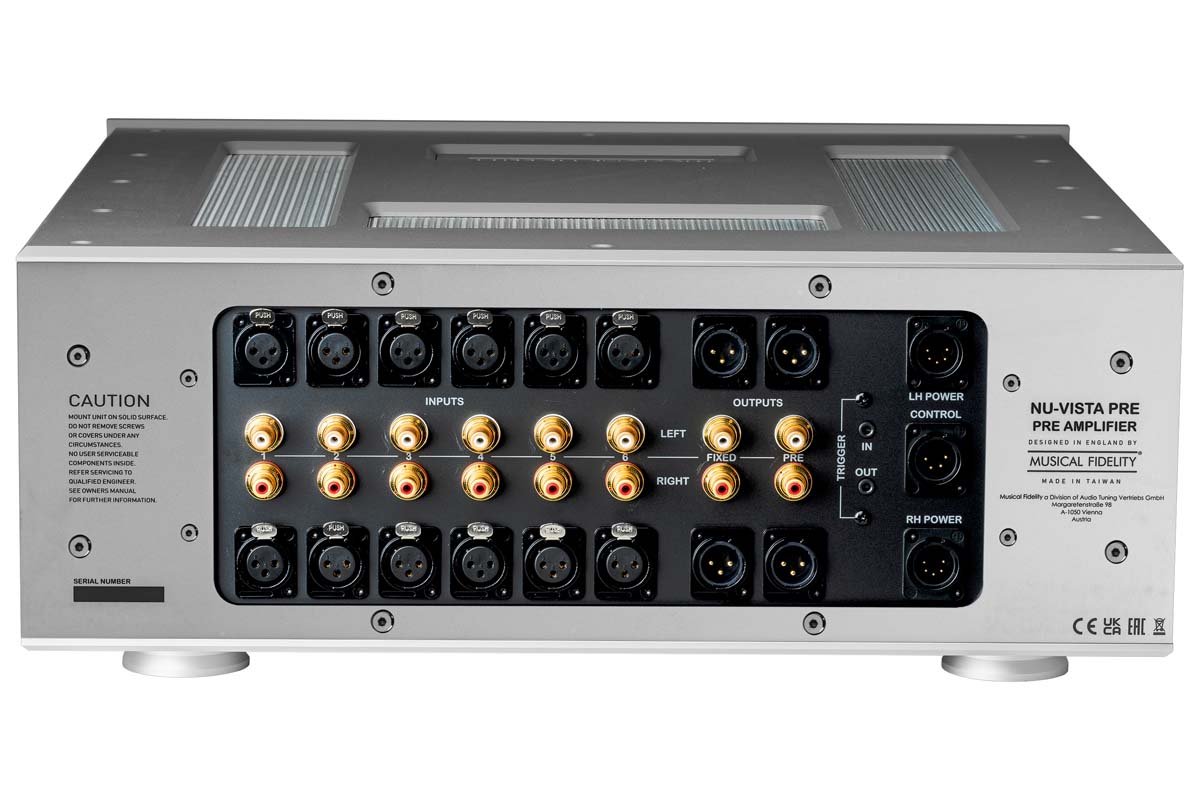

In & Output
  • 12 independent inputs: 6x RCA & 6x XLR
  • Variable Pre output: 1x RCA & 1x XLR
  • Fixed output: 1x RCA & 1x XLR
  • Trigger input and output: 3.5mm mono jack socket
  • Trigger level ±5V to ±12V
General Information
  • Remote Control included
  • Weight PRE: 22kg net (30kg)
  • Weight PRE PSU: 25kg net (34kg)
  • Dimensions PRE (WxHxD): 483 x 187,5 x 491 (506 with connectors)
  • Dimensions PRE PSU (WxHxD): 483 x 187,5 x 475 (478 with connectors)
  • Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative)
  • Consumption <0.5W in standby mode; 65W maximum
musical-fidelity-nu-vista-12 musical-fidelity-nu-vista-01 musical-fidelity-nu-vista-06 musical-fidelity-nu-vista-25 musical-fidelity-nu-vista-21 musical-fidelity-nu-vista-16 musical-fidelity-nu-vista-04 musical-fidelity-nu-vista-20 musical-fidelity-nu-vista-19 musical-fidelity-nu-vista-14 musical-fidelity-nu-vista-23 musical-fidelity-nu-vista-26 musical-fidelity-nu-vista-07 musical-fidelity-nu-vista-03 musical-fidelity-nu-vista-18 musical-fidelity-nu-vista-15 musical-fidelity-nu-vista-08 musical-fidelity-nu-vista-24 musical-fidelity-nu-vista-02 musical-fidelity-nu-vista-11 musical-fidelity-nu-vista-13 musical-fidelity-nu-vista-09 musical-fidelity-nu-vista-10 musical-fidelity-nu-vista-05 musical-fidelity-nu-vista-22 musical-fidelity-nu-vista-17
<
>

NUVISTOR TUBES

Nuvistor tubes were invented in the 1950s to solve the many shortcomings of conventional tubes. Unlike them, Nuvistor tubes offer very high reliability, low microphony, low noise, consistency from batch to batch, small size, relatively low power consumption and great technical performance.

One famous application was in the Ampex MR-70, a costly studio tape recorder whose entire electronics section was based on nuvistors. Another limited application of this very small tube was in studio-grade microphones from that era, the AKG/Norelco C12a, which employed the 7586, being a good example.

It was also later found in the famed Neumann U 47 studio microphone. This microphone was highly regarded by artists all over the world, and was used by many top recording artists such as Frank Sinatra, The Beatles, and so on.

Unfortunately, just as uses for Nuvistor tubes were being explored, the transistor was invented and it was ‘game over’ for Nuvistors. There the matter rested until about fifteen years ago, when Musical Fidelity created the first of its ground-breaking Nu-Vista series. These legendary, limited-edition products sold out in a matter of months. Today, fifteen years later, they command very high secondhand prices because of their beautiful sound, build quality, and longevity.


Musical Fidelity Nu-Vista PAS

Musical Fidelity Nu-Vista Series

The Nu-Vista PAS features the tried and tested Nu-Vista stage featuring 6S51N nuvistors in a discrete class A amplifier buffer. This is followed by a balanced configuration circuit and balanced input high power, low distortion output amplifier stage.

The power stage has 5 pairs of high power thermally compensated output devices for reliable and stable operation. Based on Titan 1000W stage, it has separate capacitors for bulk supply, and one each for output devices considerably reducing output impedance and improving dynamics.

Chokes are added for further improved supply ripple and pulse current spike reduction Bias is set for over 5W of initial class A operation thereafter the stage slides into class B operation at a point where the now much lower discontinuity is easier dealt with than “standard” crossover distortion.

The Nu-Vista PAS comes with its own dedicated external power supply. To achieve better noise performance, Musical Fidelity removed the AC mains power supply from the main unit and built it into another matching box. In this box we took advantage the extra space to set up inbuilt mains and output filtering. This quietens up the supplies and results in almost no mains-borne artefacts getting into the sensitive audio circuitry.

The Power supply has On/Standby LEDs and is controlled from the main unit front panel. If total mains isolation is required, the power supply also has rear mounted mechanical rocker switch for full power off.

Musical Fidelity Nu-Vista Series

Specifications

Amplifier
  • High output power, greater than 300W into 8 ohms, 500W into 4 ohms, 1000W peaks into 2 ohms
  • Output Voltage: 49 Volts RMS
  • Output Current: 130 Amps peal to peal
  • Damping factor: 200
  • Output devices: 5 pairs per channel
  • Gain: 16x (23.5 dB)
  • THD+N: < 0.003 % typical, 20Hz to 20 kHz
  • Signal / noise ratio: >108dB ‘A’-weighted
  • Channel separation: >96dB
  • Input impedance: 100 k Ohms
  • Input sensitivity for full output: 3 Volts RMS
  • Frequency response: + 0, –1dB, 5Hz to 50 kHz
In & Output
  • 4 fully independent inputs: 2x RCA & 2x XLR
  • 2 loop through outputs: 1x RCA & 1x XLR
  • Speaker outputs: 2 pairs 4mm banana plug/binding posts per side inputs
  • Trigger input and output: 3.5mm mono jack socket
  • Trigger level ±5V to ±12V
General Information
  • Weight PAS: 27kg net (35kg)
  • Weight PAS PSU: 40kg net (50kg)
  • Dimensions PAS (WxHxD): 483 x 187,5 x 475 (494 with connectors)
  • Dimensions PAS PSU (WxHxD): 483 x 187,5 x 475 (478 with connectors)
  • Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative)
  • Consumption <0.5W in standby mode; 130W on and idle; 1060W maximum

Musical Fidelity Nu-Vista PAM

Musical Fidelity Nu-Vista Series

The Nu-Vista PAM features the tried and tested Nu-Vista stage featuring 6S51N nuvistors in a discrete class A amplifier buffer. This is followed by a balanced configuration circuit and balanced input high power, low distortion “bridged” output amplifier stage. The power stages have 2x 5 pairs of high power thermally compensated output devices for reliable and stable operation.

Based on the Titan 1000W stage, it has separate capacitors for bulk supply, and one each for output device, reducing output impedance and improving dynamics. Chokes are added for further improved supply ripple and pulse current spike reduction. Bias is set for over 5W of initial class A operation thereafter the stage slides into class B operation at a point where the now much lower discontinuity is easier dealt with than “standard” crossover distortion.

The Nu-Vista PAM comes with its own dedicated external power supply. To achieve better noise performance, Musical Fidelity removed the AC mains power supply from the main unit and built it into another matching box. In this box the developers took advantage of the extra space to set up inbuilt mains and output filtering. This quietens up the supplies and results in almost no mains-borne artefacts getting into the sensitive audio circuitry.

The Power supply has On/Standby LEDs and is controlled from the main unit front panel. If total mains isolation is required, the power supply also has rear mounted mechanical rocker switch for full power off.

Musical Fidelity Nu-Vista Series

Specifications

Amplifier
  • High output power, greater than 600W into 8 ohms, 1000W into 4 ohms, 1500W peaks into 2 ohms
  • Output Voltage: 69 Volts RMS
  • Output Current: 150 Amps peal to peal
  • Damping factor: 180
  • Output devices: 5+5 pairs per channel
  • Gain: 16x (23.5 dB)
  • THD+N: < 0.003 % typical, 20Hz to 20 kHz
  • Signal / noise ratio: >108dB ‘A’-weighted
  • Input impedance: 100 k Ohms
  • Input sensitivity for full output: 4.3 Volts RMS
  • Frequency response: + 0, –1dB, 5Hz to 50 kHz
In & Output
  • 4 fully independent inputs: 2x RCA & 2x XLR
  • 2 loop through outputs: 1x RCA & 1x XLR
  • Speaker outputs: 2 pairs 4mm banana plug/binding posts
  • Trigger input and output: 3.5mm mono jack socket
  • Trigger level ±5V to ±12V
General Information
  • Weight PAM: 27kg net (35kg)
  • Weight PAM PSU: 40kg net (50kg)
  • Dimensions PAM (WxHxD): 483 x 187,5 x 475 (494 with connectors)
  • Dimensions PAM PSU (WxHxD): 483 x 187,5 x 475 (478 with connectors)
  • Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative)
  • Consumption <0.5W in standby mode; 130W on and idle; 2150W maximum

Musical Fidelity Nu-Vista Series
